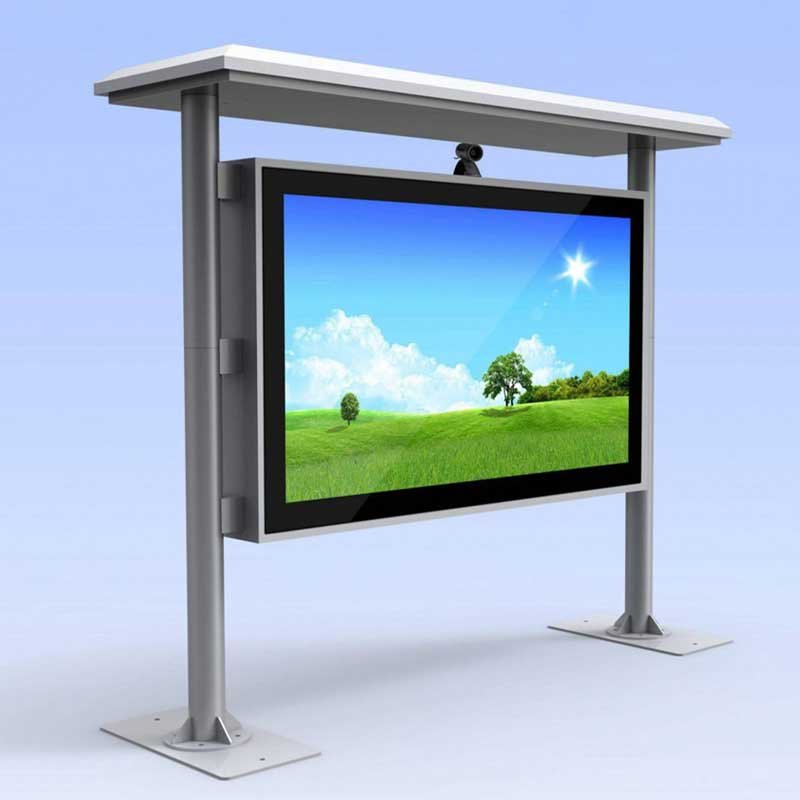

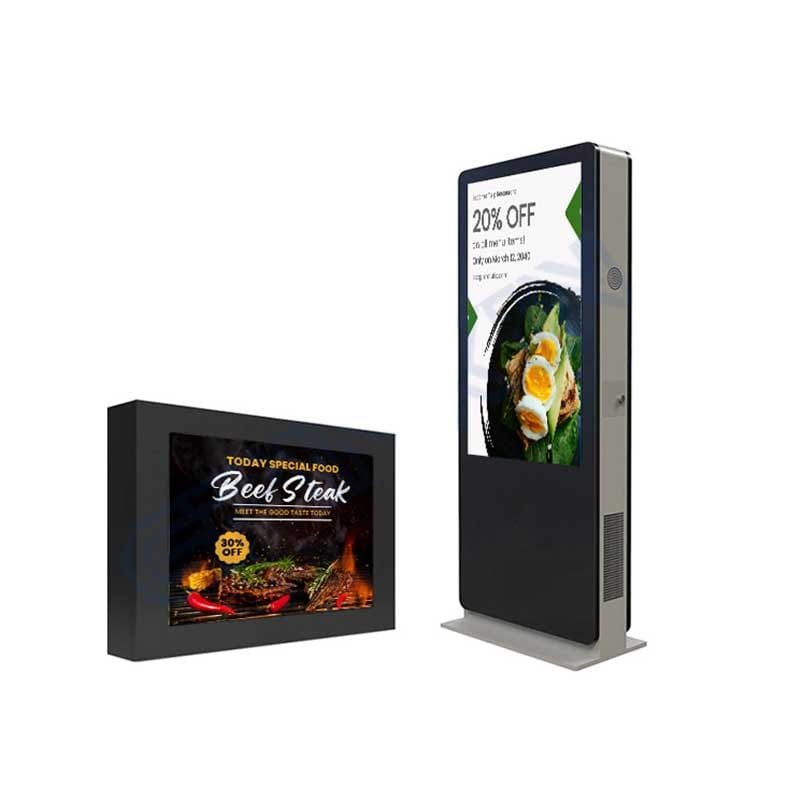

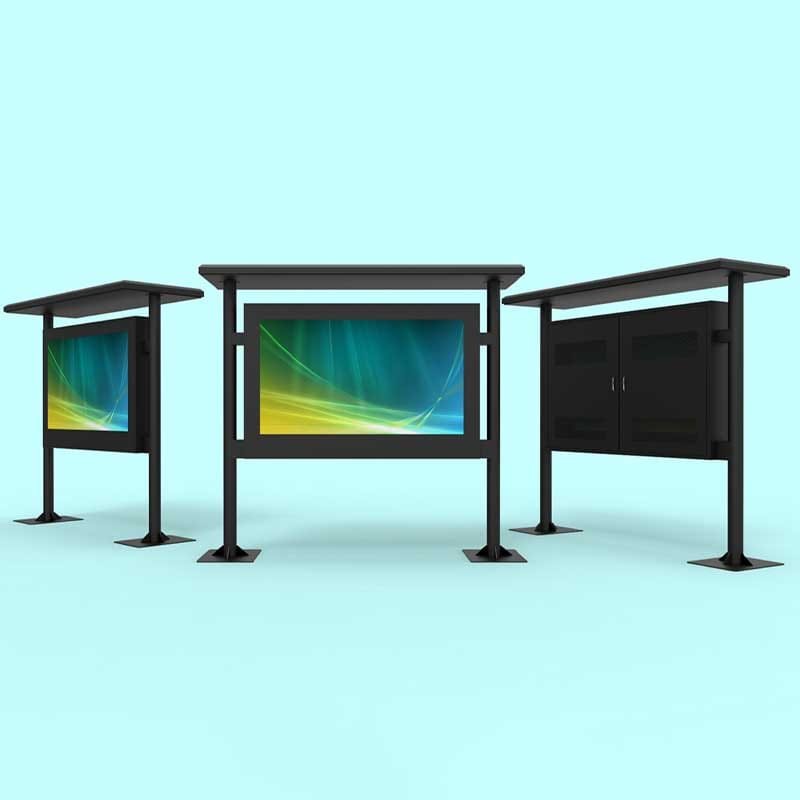

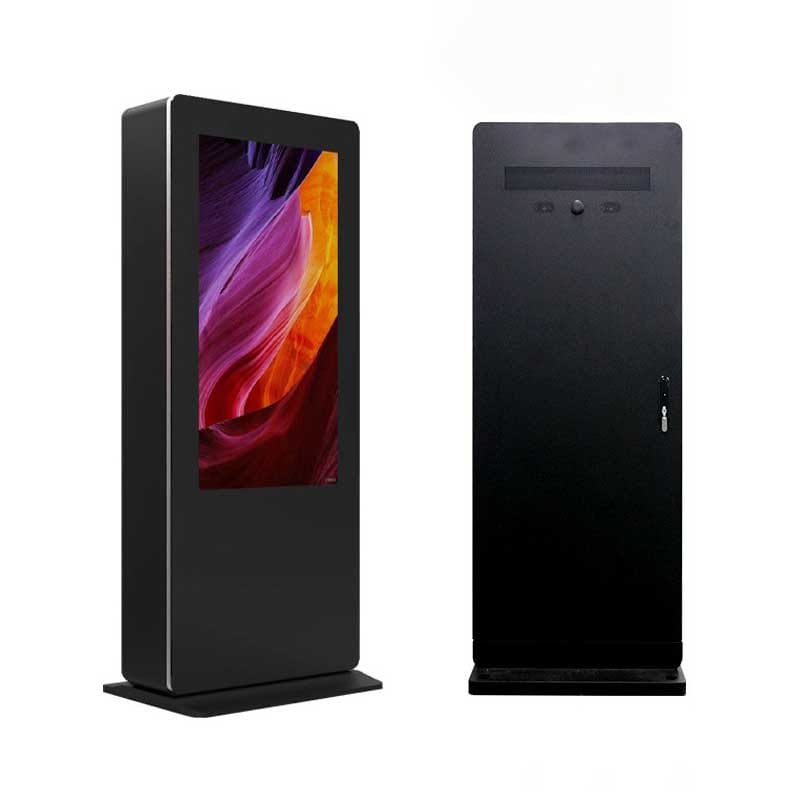

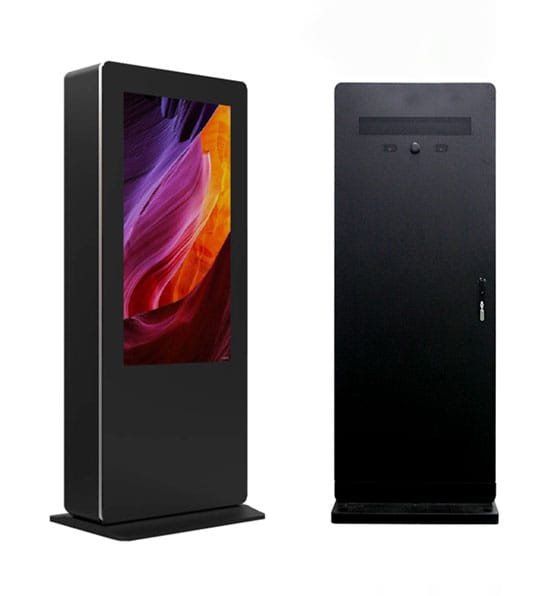

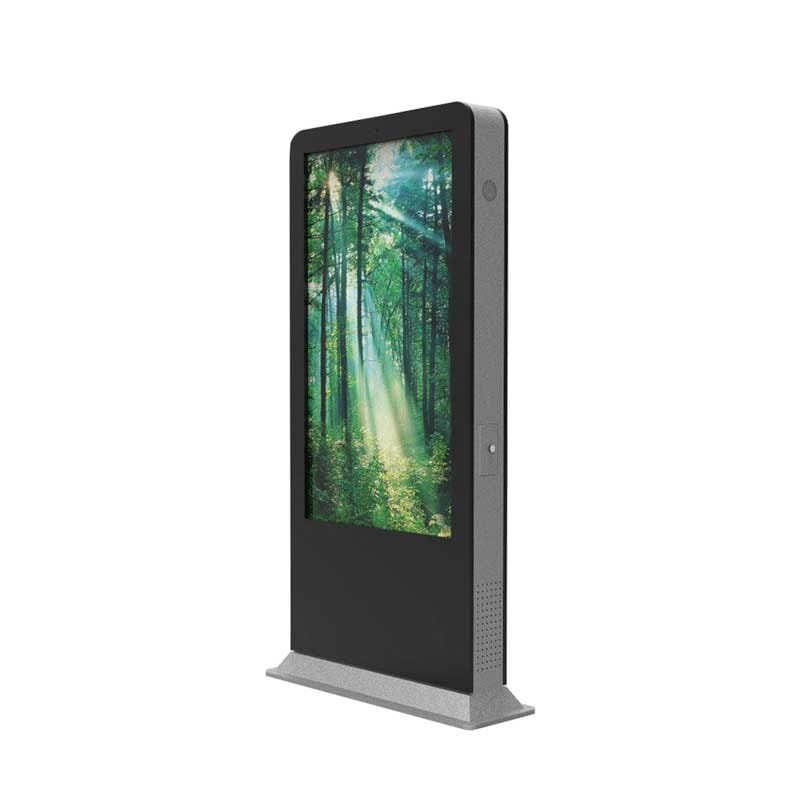

Multi-size, multi-functional outdoor floor stand digital sinage

GPINXIN has consistently designed and manufactured multi-size, multi-functional outdoor floor stand digital signage for brand owners and project contractors in global markets.

digital signage

Multi-size, multi-functional outdoor floor stand digital sinage

GPINXIN specializes in custom multi-functional outdoor floor stand digital signage solutions, offering OEM/ODM services that cater to the specific requirements of each client. From the initial concept to final production, we ensure every detail is tailored to your brand and objectives.

OEM/ODM Customization

Get more information about outdoor floor stand digital sinage

Know more about Technical Team and Support Services

Request a Quote OR 💬 CHAT with us live in the bottom right corner

Click to Request a Quote

Features
Downloads

Features

Structure
The shell is made of 1.5mm galvanized sheet, sprayed with outdoor special powder, and has been antiseptic for more than 5 years
Shell structure design waterproof edge, meet the IP55 protection level
The screen front protection glass of the whole machine adopts 5mm super white tempered glass, with light transmittance ≥98% and high light transmittance.

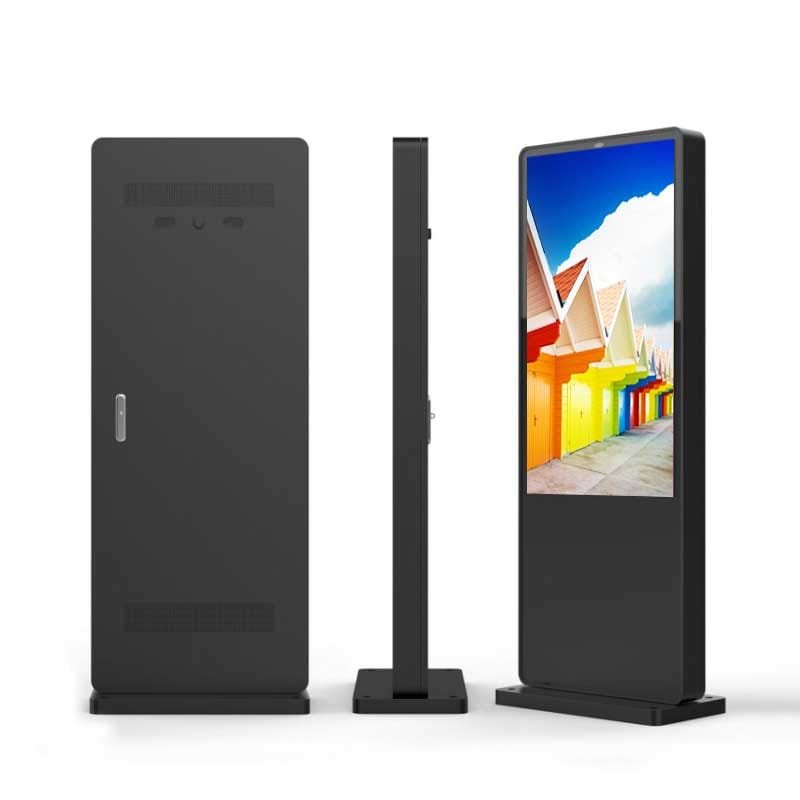

The whole machine adopts the front and rear double doors, which can facilitate the maintenance of the internal display screen, glass, cooling components and electronic parts.
The whole machine adopts modular design, convenient installation and maintenance.

‌Display
High brightness display screen, brightness up to 2000nits, design life of 50000h.
The highlighted display can be clearly visible under sunlight, with a viewing Angle of 178°.
The display is equipped with an automatic photosensitive system, which can change the brightness of the display according to the ambient light.

Intelligent temperature control system
The default air-cooled intelligent cooling and heating exhaust air temperature control system adopts intelligent through-air heat dissipation system and professional and special air duct heat dissipation design. There is a temperature sensor inside the machine that detects the temperature of the air inside the machine and displays the temperature on the control board.
When the temperature is detected below 30℃, the fan will not start.
When the temperature is between 30 ℃ and 55℃, the fan automatically adjusts its speed with the temperature. The higher the temperature, the faster the fan spins. At this time, the fan inhales the cold air from outside through the lower vent, takes away the hot air inside the machine through the air duct, and then exhausts the hot air through the upper vent, thus forming the air circulation and regulating the internal temperature
When the temperature exceeds 55℃, the screen backlight power supply will be automatically disconnected. When the temperature drops to 55℃, the screen backlight will automatically start to work.
When it is lower than -10℃, it needs to increase the heating module. At this time, the heating module and the internal fan of the machine start, and the temperature of the heating module circulates inside the machine through the fan, thus increasing the internal temperature of the machine and starting the machine.
Optional intelligent heating and cooling integrated air conditioning control system, air conditioning automatically adjust the temperature in the chassis, suitable for -40℃ to 55℃ working environment

Protective design
Outdoor waterproof rating shall be IP55 or IP65.
The use of three composite seals with good elasticity and compression deformation resistance, aging resistance, ozone resistance, chemical action, multi-angle waterproof.
The shell adopts galvanized steel design and special outdoor powder surface treatment + tempered glass, anti-explosion, anti-collision, anti-moisture, anti-rust oxidation.
Special dust filter is designed for the inlet and outlet to filter fine dust in the air and prevent mosquitoes from entering the machine.
Industrial-grade waterproof multiple anti-theft lock, with internal lock design, prevents the removal of screws from the outside to move the machine and equipment, and plays an anti-theft role.
Built-in lightning arrester and air switch. It can effectively reduce the potential difference between the interfaces of the equipment, so as to protect the equipment on the circuit. The air switch can prevent electric leakage accidents.

System compatible extensibility
Video encoding formats include MPEG-1/2/4, H.263, H.264, WMV9, RV8/9/10, Divx-3/4/5, etc.
Video packaging formats including MKV, MOV, MP4, AVI, TS, MPG, ASF, FLV, OGG, RM, etc.
Audio encoding formats supported include MP3, WMA, WAV, EAAC+, APE, FLAC, BSAC, OGG, etc.
The supported image encoding formats include JPG, PNG, BMP, etc
Extended function-It can support the expansion of camera (video call, face recognition), microphone, touch screen, printer, two-dimensional code scanning, motion sensor, light box, virtual display, card reader, one-button alarm, voice control module and other functions.

Installation Guide

Specification Sheet

Product Parameters

Configuration		Parameter

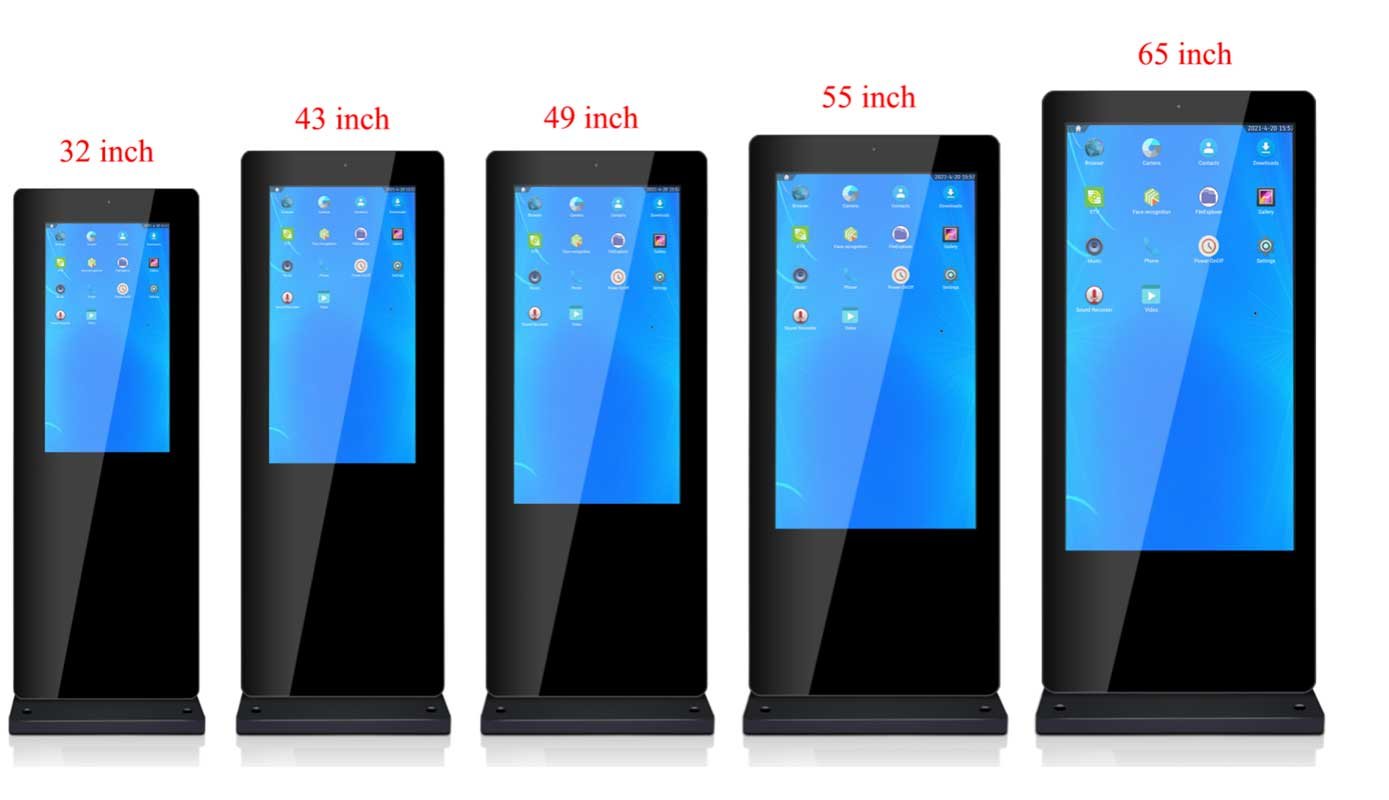

LCD panel	Size	optional 21.5 “32” 43 “49” 55 “65” 75 “86” 100 “
	Type	LCD (LG, BOE, etc.)
	Resolution	1920 X 1080p (optional 3840x2160p)
	Display area	1650.2 ×928.3(H×V) mm
	Color degree	16.7M
	Viewing Angle	178°(H) / 178°(V)
	Brightness	2000 cd/m² (1500-4000 cd/m² optional) Visible under sunlight
	Contrast ratio	5000:01:00
	Response time	5ms
Capacitive Touch	Touch Type	10 point Capacitive Touch
	Response speed	<20ms
	Response speed	Android 6.0
	Touch mode	Finger, touch pen, etc
	Hardness	Mohs Level 7
Audio System	Horn	2 × 10W(8Ω)
Audio System	Sound mode	Stereo
Heat dissipation	Intelligent direct air heat dissipation and heating system	Intelligent heat dissipation system, unique design of air duct and motherboard, automatic adjustment of wind speed and volume
	·
		Intelligent temperature sensing system, high temperature 65℃ automatically shut down the display
Electronic switch	Power supply	industrial grade power supply
	Input voltage	AC100-240v 50/60HZ
	Standby power	≤1W, supporting low-power standby mode
	Waterproof horn	Waterproof high quality 10W horn
	Lightning arrester	Three-level lightning protection
	Leakage protector	has leakage protection
Appearance	Material	Toughened glass panel + sheet metal shell (AG or AR glass can be customized)
Appearance	Color	Black/White/Custom color
Operating environment	Operating temperature	-10 ° C to 55 ° C (-40 ° C to 55 ° C Heating module or air conditioner needed)
Operating environment	Operating humidity	10~90%RH
Machine life		50000 hours
Audio and video input/output		8 Ω ·6W dual-channel audio power amplifier output
Timing switch		Support
System upgrade		Support TUSB/T card/network upgrade
Waterproof grade		conventional IP55 (IP65 needs to be customized)
Brightness adjustment		built-in automatic light sensor controller, screen brightness automatic adjustment
Temperature control system		Intelligent air cooling temperature control system (integrated heating and cooling air conditioning system needs to be customized)
Waterproof rating		Conventional IP55 (IP65 need to be customised)
Brightness Adjustment		Built-in automatic light sensor controller, screen brightness automatically adjusted.
Temperature control system		Intelligent air-cooled temperature control system (cooling and heating integrated air-conditioning system need to be customised)
Nano		Normal
Windows system(Optional)	Medium/i5 Configuration	High/i7 Configuration
	Intel Chipsets
	Intel Core i5-8/10generation	Intel Core i7-13generation
	DDR3/4:16GB/2.5inch	DDR3/4:16GB/2.5inch
	SSD:512GB/1TB	SSD:512GB/1TB
	Intel HD Graphics	Intel HD Graphics
	Input ports	1LAN，3USB3.0，3USB2.0，1MIC-IN
	Out ports	1HDMI，1VGA，1*LINE-OUT
	Operation system	Windows10(with license)
