GPINXIN is a professional manufacturer of multi-size vertical floor-standing digital signage displays, offering OEM and ODM services to global clients.

digital signage

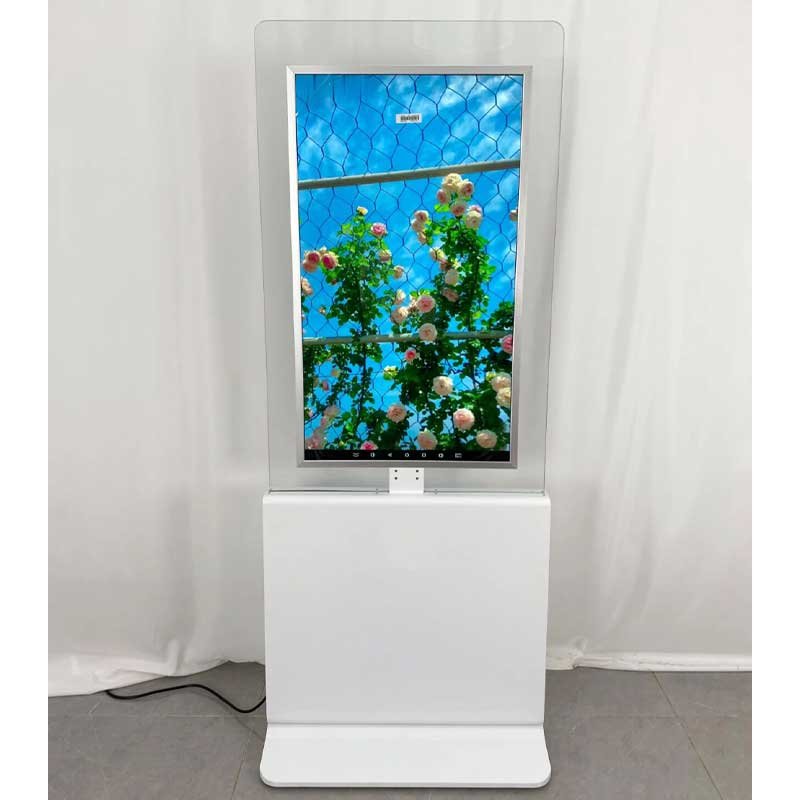

Multi-size Android-based portrait-oriented floor-standing digital signage displays

Our Multi-Size Android-Based Portrait Floor-Standing Digital Signage is a premium dual-screen display solution designed for high-impact advertising, information dissemination, and interactive applications in retail, corporate, hospitality, and public spaces.

OEM/ODM Customization

Get more information about floor-standing digital signage displays

Know more about Technical Team and Support Services

Request a Quote OR 💬 CHAT with us live in the bottom right corner

Click to Request a Quote

multi size android based portrait oriented floor standing digital signage displays

floor standing digital signage displays factory

floor standing digital signage displays oem

floor standing digital signage displays manufacturer

Features
Downloads

Features

Dual-Screen Design – Two independent displays (inner and outer) allow simultaneous or separate content playback, maximizing visibility from both sides.
Premium Open-Cell LCD Panels – Sourced from top brands including BOE, AU, LG, and Huaxing, ensuring reliable performance and excellent image quality.
Ultra-High Resolution – Each panel delivers 3840×2160 (4K UHD) at a 16:9 aspect ratio, offering crisp details and vivid colors.

Dual Brightness Configuration
Inner screen: 300 cd/m² (typical) – suitable for indoor or lower-light environments.
Outer screen: 500 cd/m² (typical) – high brightness for better visibility in bright retail or window-facing installations.
Wide Viewing Angle – 89°/89°/89°/89° ensures clear images from almost any direction.
High Contrast & Color Performance – 1200:1 contrast ratio, 72% NTSC color gamut, and 16.7M colors deliver rich, accurate visuals.

Fast Response Time – 6 ms (GTG) minimizes motion blur, ideal for video playback.
Durable Construction – Metal frame and solid metal back cover provide a sophisticated yet robust appearance.
Android-Based Smart Platform – Powered by an Mstar chipset (BH-4K03-E01 motherboard), supporting 4K signal input via HDMI (up to 4Kx2K@60Hz) and versatile playback options.
User-Friendly Controls – On-screen display (OSD) with multilingual support, plus physical buttons (Menu, Up, Down, Volume+, Volume-, Source, Power, Eco).

Efficient Power Management
Operating consumption: <120 W
Standby consumption: <0.5 W
Wide voltage input: AC 100–240V, 50/60Hz
Rocker switch main power control.
Complete Accessories Included – Mobile base, power cord (1.8m), Wi-Fi antenna, remote control, base screws, wrench, warranty card.
Reliable Operating Environment –
Operating temperature: 0°C ~ 40°C
Storage temperature: -20°C ~ 60°C
Humidity: 10–90% RH
Altitude: ≤2000m
Certification – 3C (China Compulsory Certification) approved.
Overall Dimensions (Complete Machine)
993(W) × 27(D) × 2320(H) mm – slim profile with a commanding vertical presence.

Product Advantages
1. Dual-Screen Maximum Impact
Engage audiences from both sides simultaneously – perfect for walkways, store entrances, trade shows, and transportation hubs.
Run independent content on each screen or mirror the same message for broader coverage.
2.Exceptional Visual Quality
True 4K UHD resolution ensures sharp text, detailed images, and smooth video.
High-brightness outer screen (500 cd/m²) guarantees visibility even under strong ambient light, while the inner screen (300 cd/m²) reduces glare and power consumption in controlled environments.
Wide color gamut (72% NTSC) and high contrast (1200:1) produce vibrant, lifelike colors.
3. Robust & Elegant Build
All-metal construction (hardware backboard and solid metal back cover) offers durability, heat dissipation, and a premium look.
Ultra-thin depth (only 27mm) and portrait orientation save floor space while drawing attention.
4. Flexible & Future-Ready Platform
Android-based architecture supports a wide range of apps, media formats, and remote content management.
HDMI input accepts signals up to 4K@60Hz, compatible with various media players and devices.
5. Easy Installation & Mobility
Comes with a mobile base as standard – roll the unit to any location without fixed mounting.
Clear accessory kit (wrench, screws, remote control) simplifies assembly.
6. Energy Efficient & Eco-Friendly
Low standby power (<0.5W) and typical operating power under 120W reduce electricity costs.
Eco button provides quick access to power-saving modes.
7. Long Lifespan & Reliability
50,000 hours rated panel life ensures years of continuous operation.
Wide operating temperature and humidity range make it suitable for various indoor environments.
8. Complete Certifications & Support
3C certified for safety and compliance.
Includes warranty card and certificate of approval – backed by manufacturer support.

Installation Guide

Specification Sheet

Product Parameters

Type Category	Parameter	parameter	Specification
Gerenal Feature Main Functions
Opencell LCD panel	Screen Size	Screen size	43″/49″/55″/65″ x 2 (two displays)
	Panel Brand / Model	Panel brand/model	BOE/AU/LG/Huaxing
	Resolution / Aspect Ratio	Resolution/Aspect Ratio	3840×2160/16:9
	Active Area	Display area	1428.48(W)×803.52(H) mm
	Backlight Type	Backlight type	Side-lit E-LED
	Brightness	brightness	Inner screen low brightness 300 cd/m² / Outer screen high brightness 500 cd/m²2 (Typical)
	Contrast Ratio	Contrast	1200:1 (Typical)
	Pixel Pitch	Pixel pitch	0.285375(mm) (H) x 0.285375(mm) (V)
	Response Time	Response time	6 GTG (ms)
	Viewing Angle	Perspective	89 / 89 / 89 / 89
	Chromaticity Coordinate	Color coordinates	X: 0.283 +0.03 Y: 0.297 ± 0.03
	Display Colors	Color saturation	8-bit + FRC, 16.7M colors
	Panel Frame Rate	Panel frame rate	60Hz
	Color Gamut	Color gamut coverage	72% (NTSC)
	Brightness Uniformity	Brightness uniformity	More than 70% of the nine-square grid
	Life Time	life	50,000 Hrs
	Colour	color	White (black optional, customizable)
1: Main PCBA (Monitor Motherboard)	HARDWARE CONFIGURATION
	PCBA model	Motherboard Model	BH-4K03-E01
	Chipset	main chip	Mstar
	MARKET	Target application	4K Monitor; Education whiteboard; Medical Monitor;
	Panel Type	type	8-lane V-By-One 4K UHD@60Hz
	HDMI VIDEO INPUT	signal input	480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 4Kx2K@60Hz
	KEY FUNCTION	Button Functions	MENU, UP, Down, VOL+, VOL-, INPUT, POWER, ECO (Menu, Up, Down, Volume+, Volume-, Source, Power, Energy Saving)
	OSD LANGUAGE	OSD Language	English, Multi-Language
2: Main PCBA(Motherboard)	HARDWARE CONFIGURATION
	PCBA model	Motherboard Model	BH-4K03-E01
	Chipset	main chip	Mstar
	MARKET	Target application	4K Monitor; Education whiteboard; Medical Monitor;
	Panel Type	type	8-lane V-By-One 4K UHD@60Hz
	HDMI VIDEO INPUT	signal input	480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 4Kx2K@60Hz
	KEY FUNCTION	Button Functions	MENU, UP, Down, VOL+, VOL-, INPUT, POWER, ECO (Menu, Up, Down, Volume+, Volume-, Source, Power, Energy Saving)
	OSD LANGUAGE	OSD Language	English, Multi-Language
Power	Power Input	Power input	AC 100 – 240V 50/60Hz
	Operation Consumption	Operating energy consumption	<120 W
	Standby Consumption	standby power consumption	<0.5 W
	LED Indicator Light Mode	Indicator light mode	Power on: Blue /Power off: Red
	Main Power Switch	power switch	rocker switch
ID Features	ID Features	Appearance features	The device features a metal frame and a high-definition display, giving it a simple yet sophisticated look that combines practicality with a modern feel.
	Cabinet material	Shell material	Hardware backboard, solid metal back cover
	Complete Machine	Overall dimensions	993272320mm (width×thickness×height)
Accessories	Spanner	wrench	×1
	Base screw	Base screws	×10 pieces (the exact number will depend on the actual base).
	Power Cord	power cord	1×B/T (1.8M/three-prong plug)
	Warranty Card/Certificate of Approval	Warranty card/certificate of conformity	×1
	Wi-Fi antenna	WIFI pole	×1
	Remote control	remote control	×1
	Move the base	Mobile base	×1 set
Container Loading Information	Packing Size	Packaging size	/
Container Loading Information	Gross / Net (Kg)	Gross weight/Net weight (kg)	/
Operation Environment	Storage Temperature	Storage temperature	-20ºC~60ºC
	Operating Temperature	Operating temperature	0ºC~40ºC
	Operation Humidity	Operating humidity	10~90%RH
	Altitude	Altitude	≤2000m
Certifcate Certificate	3C	China Compulsory Certification	Y
