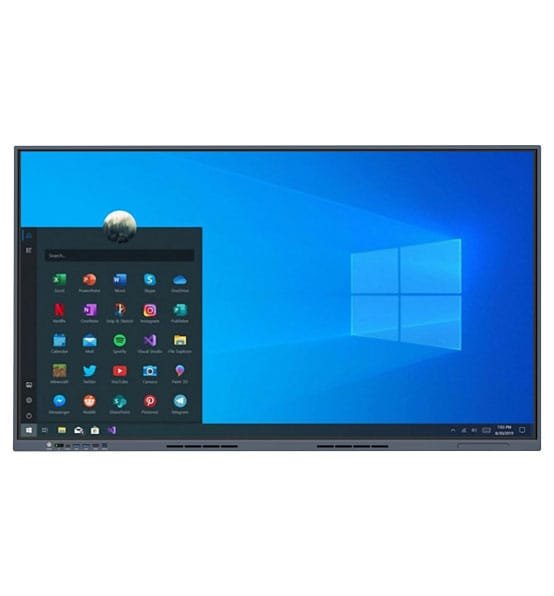

110-inch 4K Interactive Smart Whiteboard – featuring infrared multi-touch technology, Android OS, and ultra-clear 4K resolution. Designed for seamless collaboration in modern meeting rooms, smart classrooms, and digital signage applications. Supports wireless screen sharing, annotation, and multi-user interaction. Built-in speakers, HDMI/USB/Wi-Fi connectivity, and optional OPS PC module for enhanced performance. Available in multiple sizes (86″, 98″, 100″, 110″) to suit different spaces. Ideal for corporate offices, schools, hospitals, and retail environments. Factory-direct supply with competitive pricing, OEM/ODM supported. CE, FCC, RoHS certified.

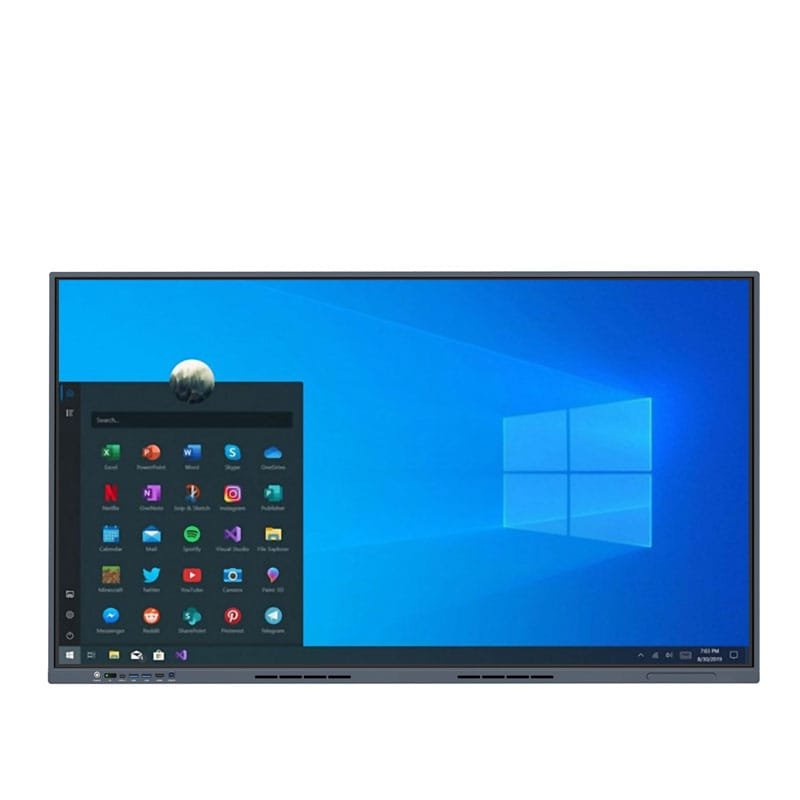

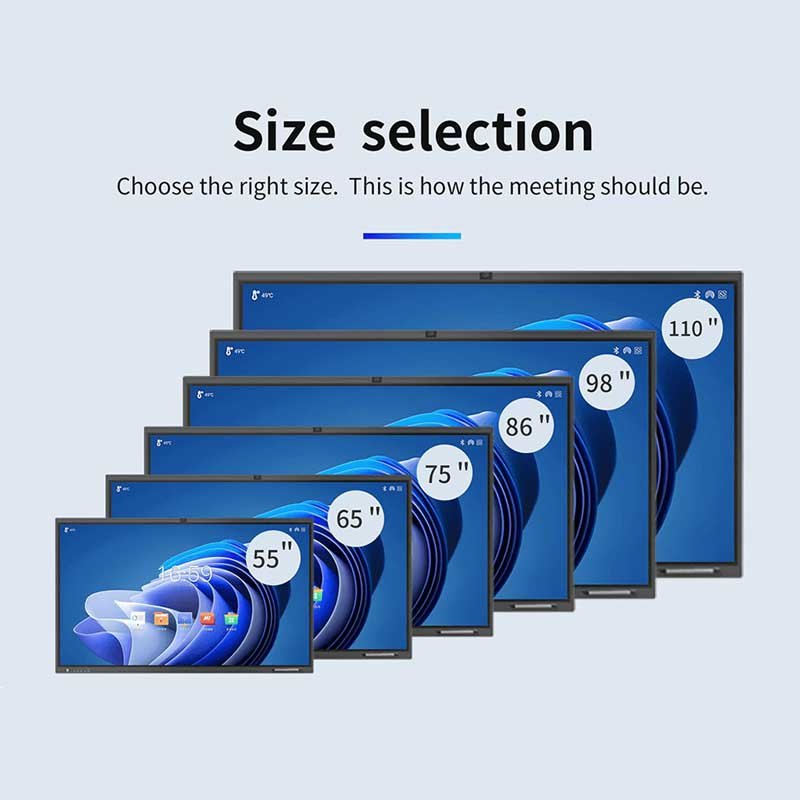

55 inch to 110 inch interactive flat panel ifp with windows system

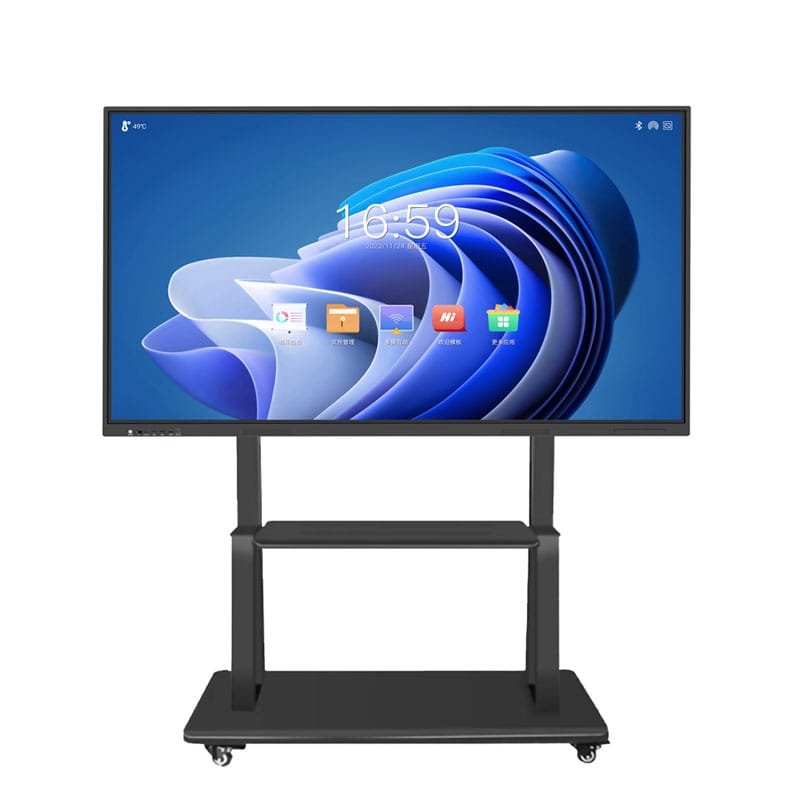

interactive flat panel with movable mount bracket

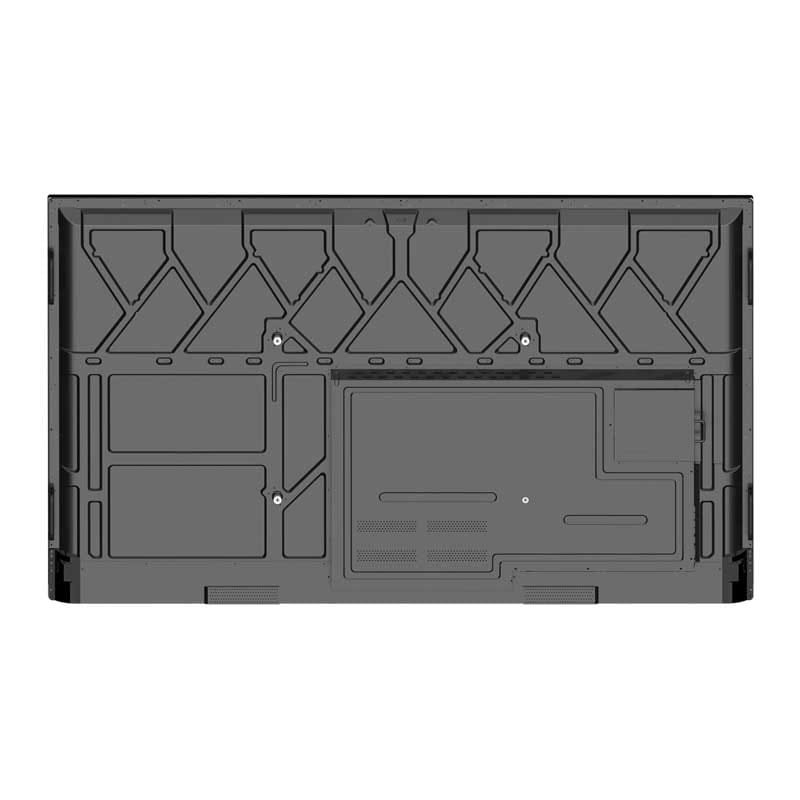

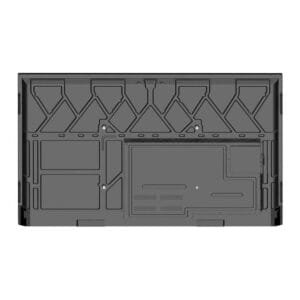

55 to 110 inch inch interactive flat panel with metallic black rear casing
Branding

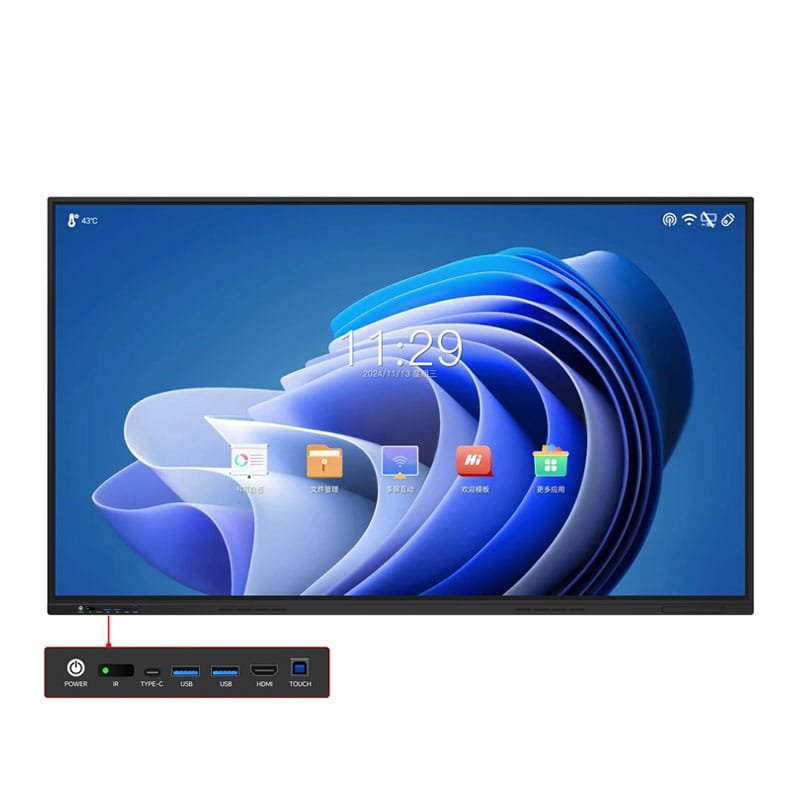

three view drawings for interactive flat panel

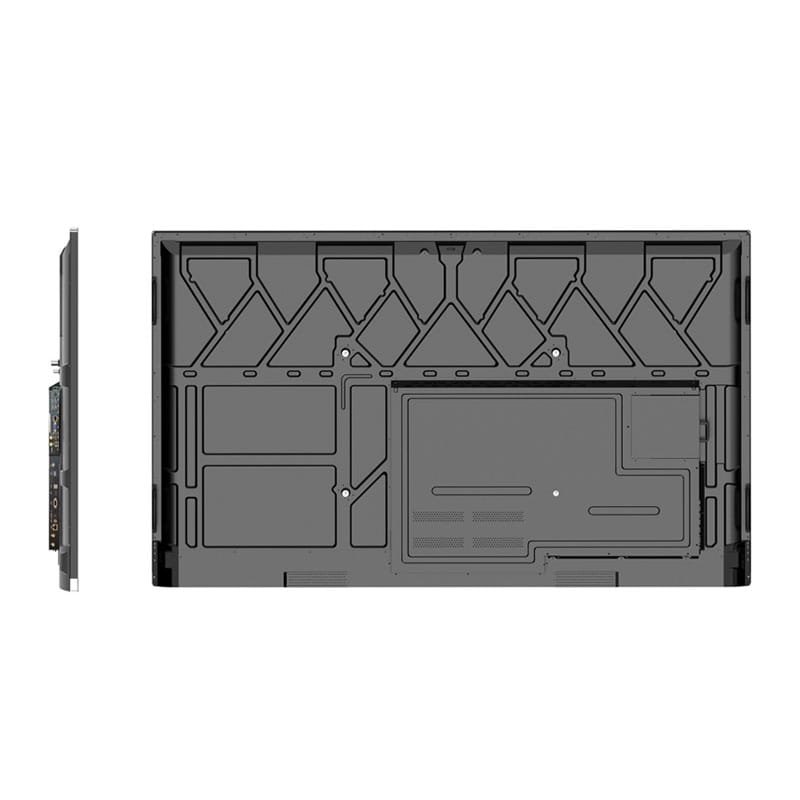

three view drawings for interactive flat panel oem

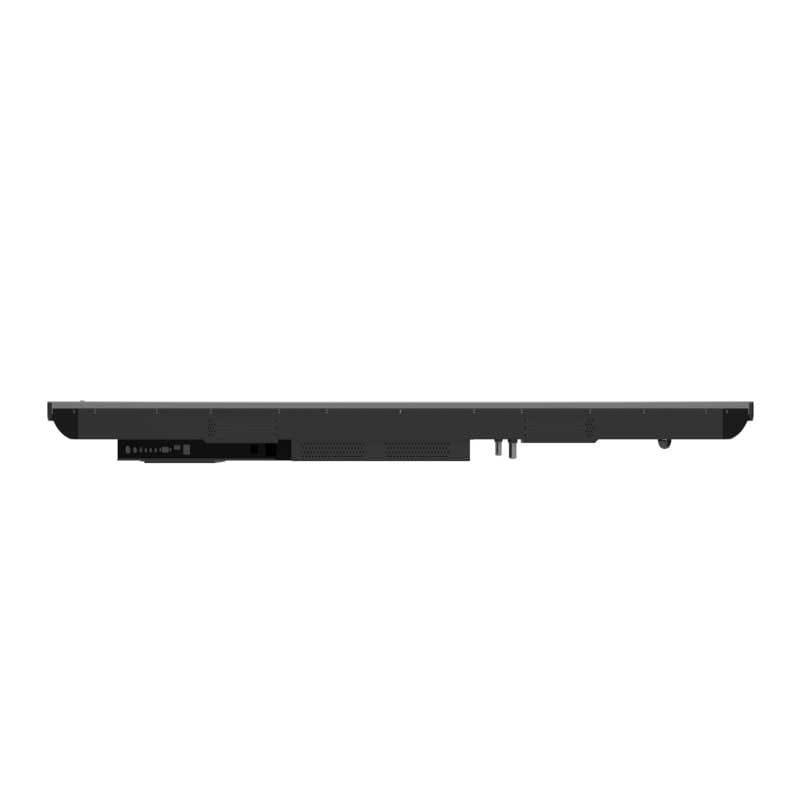

interactive flat panel bottom view

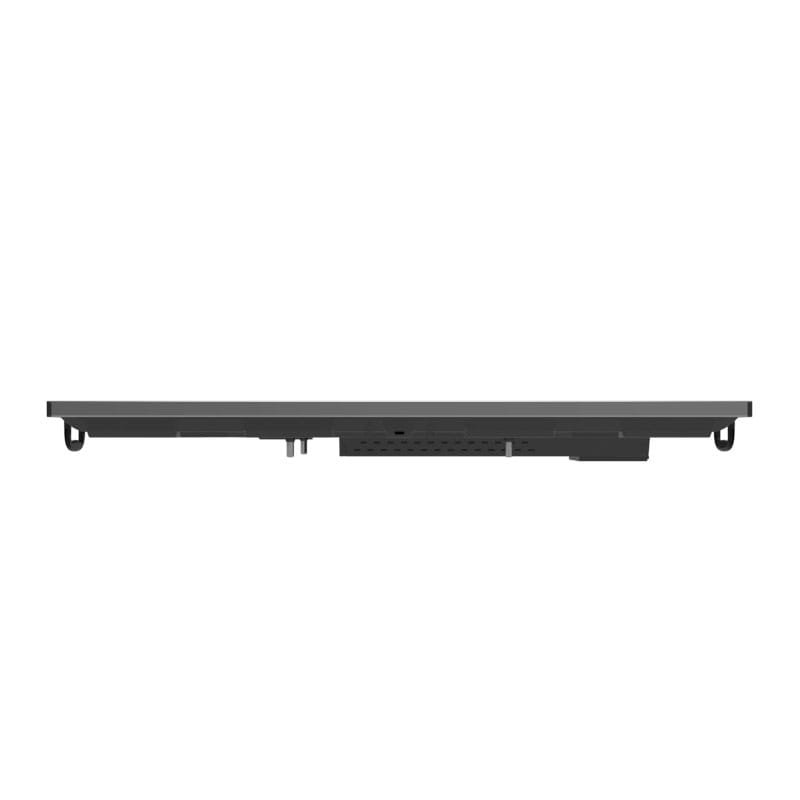

interactive flat panel top view

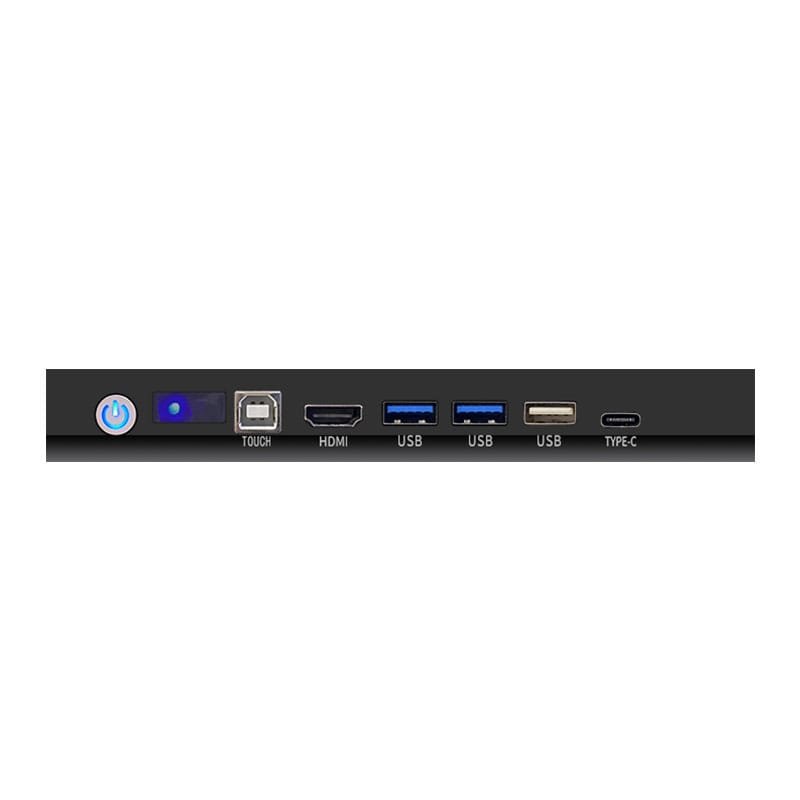

physical port on the front

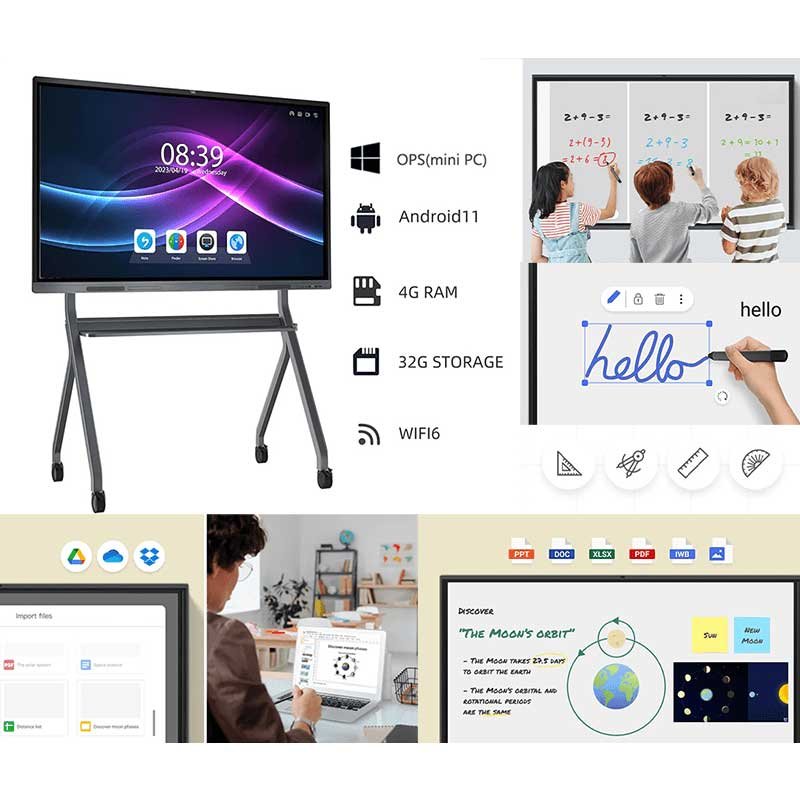

smart board for school teaching
| Ⅰ Product Features | |||
| Basic Functions | One key switch on/off | Support Android/Windows/ Google Chrome independent switch on/off | |
| Mobile phone wireless casting | Support | ||
| Computer wireless casting | Support (Need with wireless projector(Optional)) | Not includes | |
| Dual-frequency transmitter hotspot | Support(2.4G+5G) | ||
| Intelligent whiteboard Softare | Support | ||
| Office software, document classification | Support | ||
| Recording screen, screenshot | Support | ||
| Welcome theme material template | Support | ||
| Multi-type interface | Support | ||
| One key energy saving | In the absence of turning off the power of the whole machine can be turned off or turn on the backlight of the LCD screen by a single key. Achieve power-saving function | ||
| OPS module | Support (OPS module is optional) | Not includes | |
| Soft centre control | Without any key, through gesture touch to call the screen touch centre control, to achieve in any signal channel can return, home, multi-task, channel switching, annotation, brightness, volume and other controls | ||
| One key lock screen | Support | ||
| Signal Switching | Plugging in the external computer, automatically search for signals and prompts or automatically switch to ensure that the use of convenience | ||
| Multimedia playback | Can automatically identify the TV-USB storage, prompt and can be switched to the TV board comes with media playback | ||
| Light sensor | The entire device can detect and automatically adjust screen brightness to achieve optimal display performance in varying lighting conditions. | Optional | |
| Open System | The open Android system can be free to install various types of APP | ||
| Ⅱ Characteristics | |||
| Shell and Appearance | Ultra-thin aluminum front frame, the surface of fine sandblasted and anodized, zinc alloy plating corner code, sheet metal back cover, the whole machine super metal texture and active heat dissipation. | ||
| Touch structure | Low-touch and-zero bonding process, strong touch writing experience. | ||
| Tempered glass+AG | Physically toughened explosion-proof glass of Morse 7 | Anti glare screen is optional | |
| Installation | Wall mount(Standard mounting bracket) | Mobile stand for Optional | |
| Standby power | ≦0.5W | ||
| Input Voltage | 110v~240V/50~60Hz | ||
| Power connector specification | Pin Type | ||
| Audio Speaker | Front 2* 8Ω 10Wspeakers | 21.channel 2*15W+20W subwoofer is optional | |
| Storage environment | Storage temperature: -20℃~60℃; | ||
| Storage humidity: 10%RH~90%RH | |||
| Working environment | Operating temperature: -10℃~55℃; Working humidity: 10%RH~90%RH | ||
| Ⅲ Display Parameter | |||
| Screen Size | 55inch（16：9）to 110inch | ||
| Resolution | 3840（H）×2160（V) | ||
| Viewing angle | 178°（H）/178°(V) | ||
| Contrast Ratio | 5000:01:00 | ||
| Scanning frequency | 4K-60Hz | ||
| Backlight life | ＞50000 hours | ||
| Ⅳ Touch Parameter | |||
| Touch embedded way | Built-in all-in-one, non-external type | ||
| Touch sensor technology | Infrared sensor recognition touch technology (20 points) | 40points is optional | |
| Writing method | Finger, stylus or other diameter not less than 2mm | ||
| Touch resolution | 32767×32767 | ||
| Touch precision | More than 90% of the touch area of ± 1mm | ||
| Touch times | Theoretical unlimited number of touches | ||
| Single-finger response speed | ≥6ms | ||
| Driver | Driver-free | ||
| Touch function | Support image zoom in, zoom out, rotate | ||
| Ⅴ System Configuration & Interface Parameters | |||
| RAM | 4GB/8GB(Optional) | ||
| ROM | 32GB/128GB(Optional) | ||
| GPU | Mali-G52 | ||
| System | Android/Windows/Google Chrome | ||
| Front Interface | USB2.0*2, one is dual-channel | ||
| HDMI IN*1 | |||
| TOUCH USB*1 | |||
| TYPE-C*1, Only supports charging and adapts to typeC port screen projectors. | Full TYPE-C is optional | ||
| Input port | RJ45 hundred megabit network port × 1 | ||
| HDMI IN 2.0×2(One support ARC) | |||
| USB 2.0×4 | |||
| TF card ×1 | |||
| MIC IN*1 | |||
| Output port | Coaxial Output×1 | ||
| Line out*1 | |||
| RS232 ×1 | |||
| HDMI OUT 2.0×1 | |||
| TOUCH USB×1 | |||
| Wifi and Bluetooth | 2.4G+5G+5.0 Bluetooth, support WIFI5 | ||
| OSD Language | Multi-language support | ||
| Decoding | 3D digital comb filter, image motion noise reduction, 3D motion compensation, etc. | ||
| Ⅵ OPS module(Optional)Not includes | |||
| Generation:2/3/4/6/7/8/9/10/11/12/13 | |||
| Intel: 3/5/7 | |||
| Intel chipsets | |||
| DDR3/DDR4: 4GB/8GB/16GB/32GB | |||
| SSD:128GB/256GB/512GB/1T/2T | |||
| Intel HD Graphics | |||
| RJ45*1，USB3.0*2，USB2.0*4，Audio in/out×1，VGA IN*1/DP ,HDMI OUT*1 | |||
| Gigabit wired network, 2.4G wifi (optional 2.4G+5G dual band wifi) | |||
| System:Windows 7/10/11pro（With license is optional） | |||
| Ⅶ Standard Accessories | |||
| Touch pen | 1 | ||
| Remote control | 1 | ||
| Warranty card | 1 | ||
| Certificate of Conformity | 1 | ||
| Instruction manual | 1 | ||
| 1.5 meters power cord | 1 | ||
| Wall mount bracket | 1 | ||
| Optional accessories (Not include) | USB touch cable, HDMI cable, magnetic touch pen, flip pen, wireless projector, NFC, Finger Printer, etc. | ||
